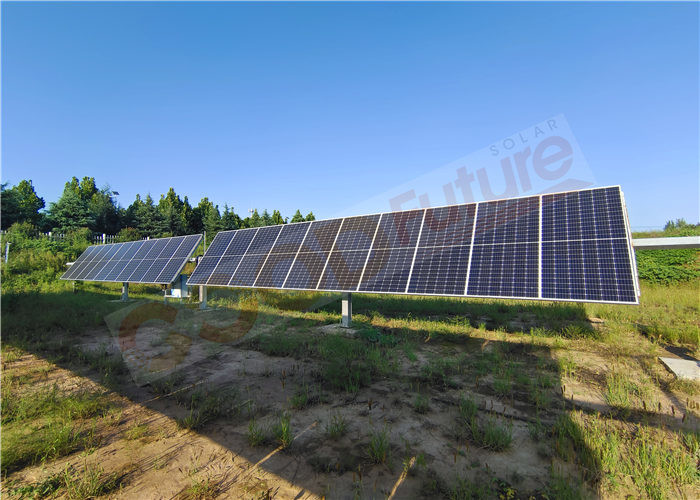

10MW solar power system ground mount solar tracking system
Working principles:
1. Strong wind protection, optional with rain cleaning mode, automatic snow removal mode.
2. Independent driving single row design, no linkage rod, strong terrain adaptability and high plot ratio.
3. The structure is simple, the parts are highly pre assembled, and the construction time is saved.
4. IP66 aviation plug connection is adopted, and the system is free of debugging.
5. Photovoltaic power generation can be increased by 24-43%.
6. It can communicate with the inverter in real time, read the output data of the inverter and calculate the best tracking angle.
Advantage:
The structure is simple, the parts are highly pre assembled, and the construction time is saved.
Weight-lifting structure with 5 supporting points, shaped table design combined with a four-link age structure,driven by slewing drive.
Adapt to outdoor environment,working temperature -40~80C°.
Hot-dipped zinc galvanization will extend the work life of the brackets
Independent driving single row design, no linkage rod, strong terrain adaptability and high plot ratio.
Automatic control: The solar tracking system will provide protection automatically for different weather (rain, snow, high winds, etc. )
Technical Parameters
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
